12m Single Measurement Tof Sensor Time Of Flight Accuracy 3cm For Long Range

Name: 12m Single Measurement Tof Sensor Time Of Flight Accuracy 3cm For Long Range
Brand: JRT/OEM
Price: 1 USD

Brand Name : JRT/OEM

Model Number : IT02S-4

Certification : CE,ISO9001,ROHS, FCC,FDA.

Place of Origin : Chengdu, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, Pay pal

Supply Ability : 10000 pcs/day

Delivery Time : 1-3 working days

Packaging Details : neutro-packing

PRODUCT NAME : 100hz high frequency tof sensor

Measure Range : 12m

Accuracy : 2cm

Type : 650nm

Size : 46*17*7mm

Weight : About 4g

Contact Now

12m single measurement tof sensor time of flight sensor accuracy 3cm

Overview

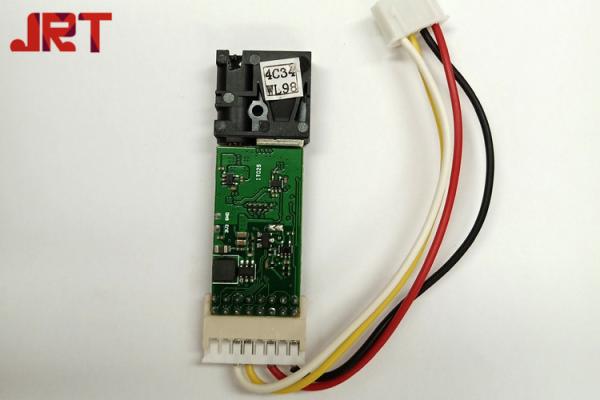

Tof Series of laser distance sensor has a small diameter visible red laser, with 650nm laser wave length. The IT02S model tof sensor module is reflected off the object's surface to the tof lens via single transmit and single receive, so that it can measure fast, specially the single measurement mode tof sensor time of flight sensor

* 2cm or 4cm accuracy
* 10m to 12m meausre range
* 100Hz Measurement Rate
* -10 ℃~50 ℃ can be customized.

Specification
Accuracy 2cm
Resolution 1cm
Measuring Range 0.1-12m
Frequency 100Hz
Laser Class Class II
Laser Type 650nm, <1mw,red
Size 46*17*7mm
Weight About 4g
Voltage Working range: +2.7V~+3.6V
Electrical Level TTL/CMOS
Communication interface UART,115200bps(default)
Operating Temperature 0-40 ℃
Storage Temperature -25~60 ℃

12m Single Measurement Tof Sensor Time Of Flight Accuracy 3cm For Long Range

Services: APPLICATION DEVELOPMENT, CUSTOMIZED SENSOR MODULES MEASUREMENT PROJECTS.
